Flange Electric Pipe Beveling Machine 42r/Min Cutting

Name: Flange Electric Pipe Beveling Machine 42rMin Cutting
Brand: Wellnit
Price: 1 USD

Flange Electric Pipe Beveling Machine 42r/Min Cutting Manufactures

Brand Name : Wellnit

Model Number : WFS/WFP

Certification : ISO9001

Place of Origin : china

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 10 sets a month

Delivery Time : within 7 days after received 100% payment

Packaging Details : Plywood

Model number : WFS/WFP

Specifications : 610/1000/1650/2000/3000

Installation scope : 50-2800mm

Tool stroke : 50mm/102mm

Rotation angle of cutter head : +-30，+-360

Warranty : 1 year

Contact Now

Flange end processing machine is a good helper for repairing flange surface

Product features

Flange end surface processing machine can process flange surface, sealing water line, flange inner hole, outer

circle and various forms of sealing surface (RF, RTJ, etc.)

The machine adopts the latest linear and ball screw technology, and is fixed in the middle of the pipe or flange by

the internal clamping method, making the operation easier and more convenient

Drive methods are: servo motor, pneumatic motor, hydraulic motor

Widely used in the maintenance of flange sealing surface, flange surface repair and processing of various metal materials such as cast iron, alloy structural steel, stainless steel, etc.

Technical parameter

Model	WFS / WFP / WFH
Specifications	610	1000	1650	2000	3000
Flange surface processing range	50-610mm	160-1000mm	500-1650mm	690-2200mm	1150-3000mm
Installation scope	50-508mm	158-820,mm	500-1500mm	690-2000mm	1120-2800mm
Tool stroke	50mm	102mm	102mm	102mm	102mm
Rotation angle of cutter head	+-30°	+-30°	+-30°	+-360°	+-360°
Cutter speed	0-42r/min	0-33r/min	0-22r/min	0-20r/min	3-12r/min

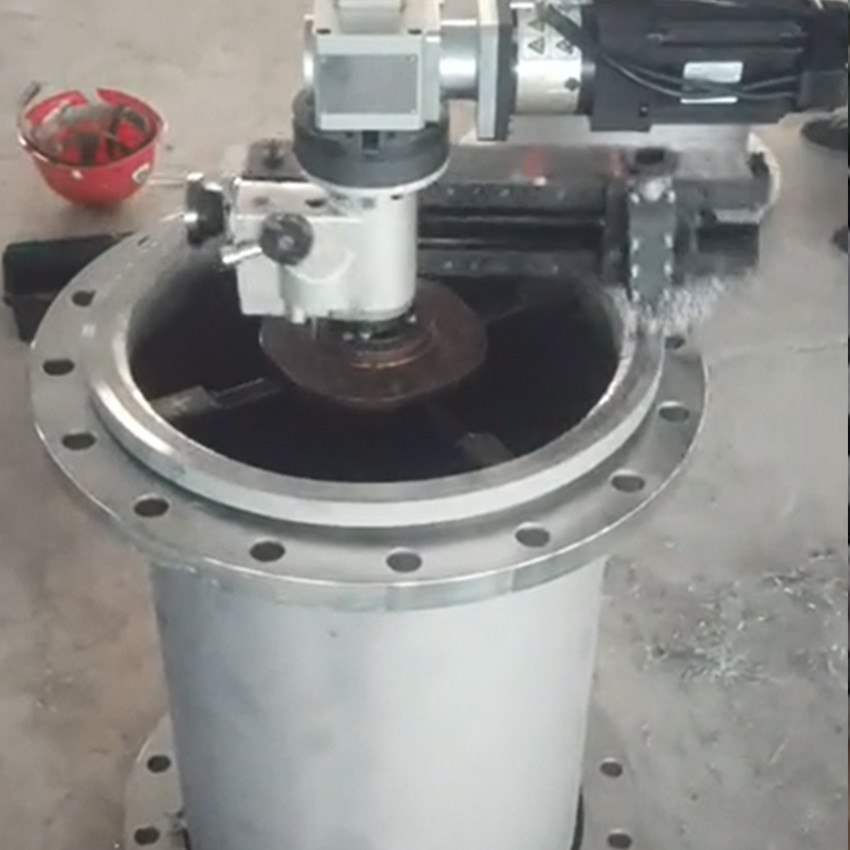

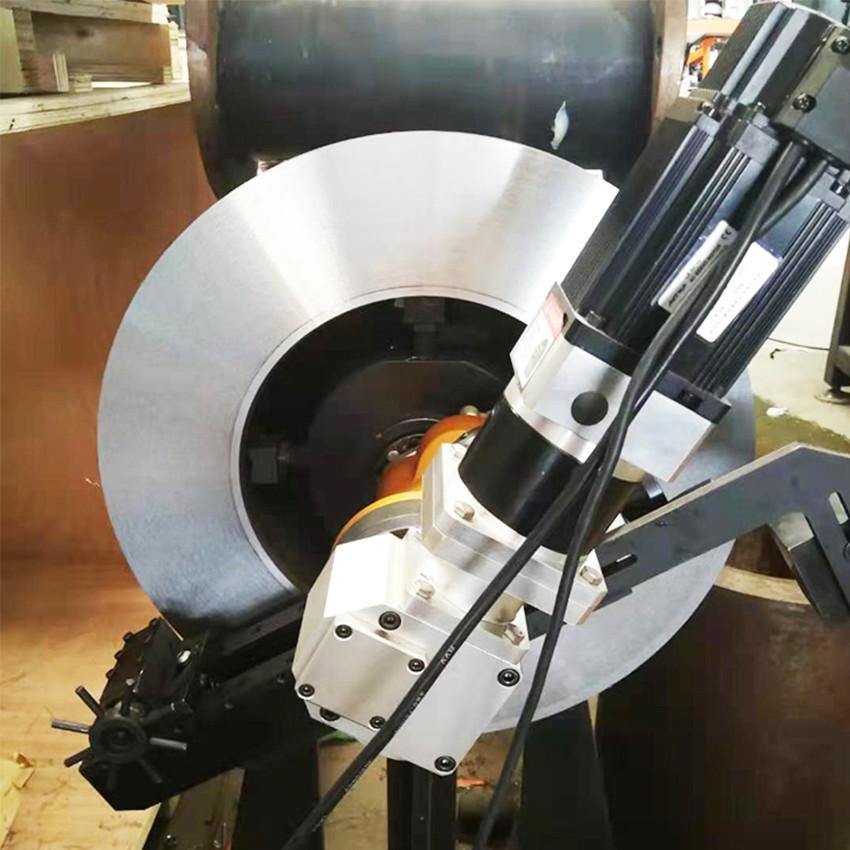

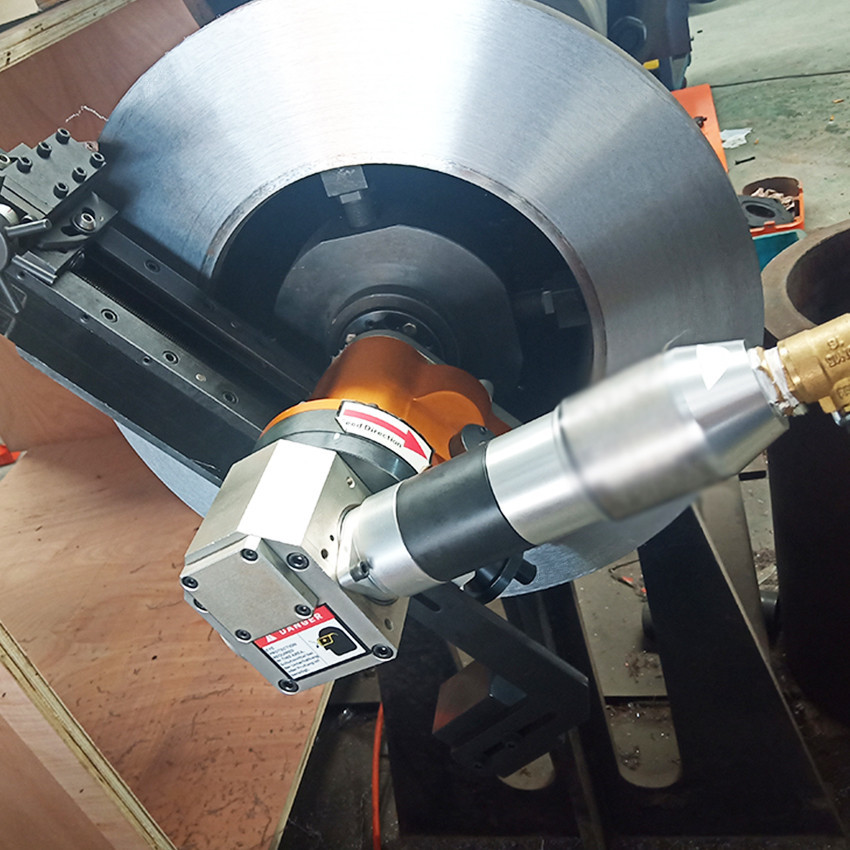

Product Show

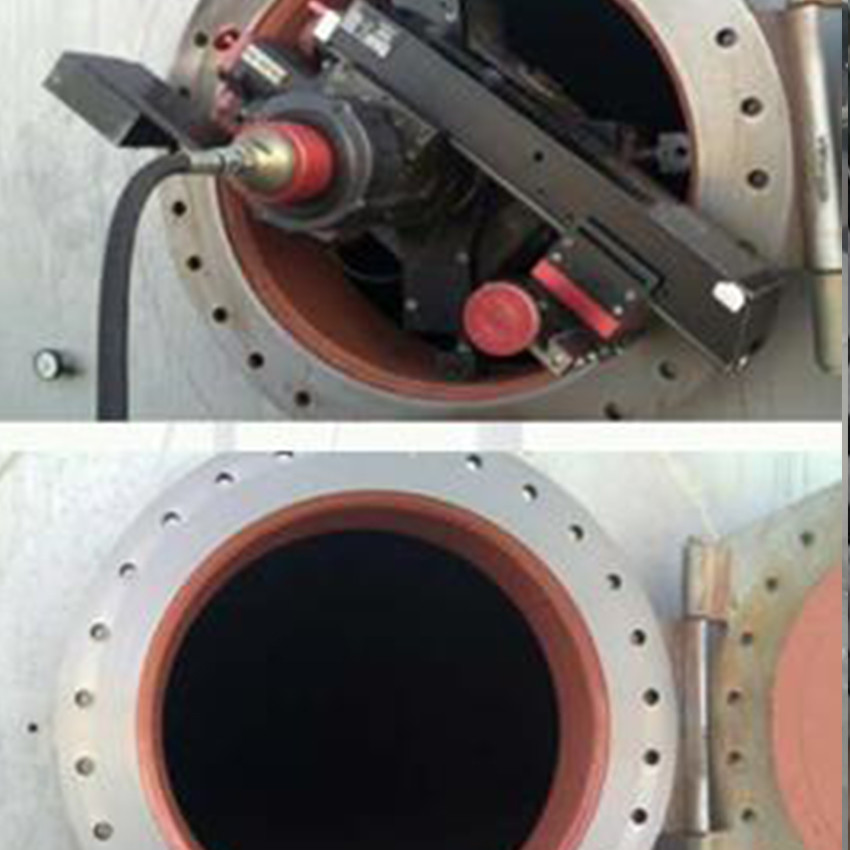

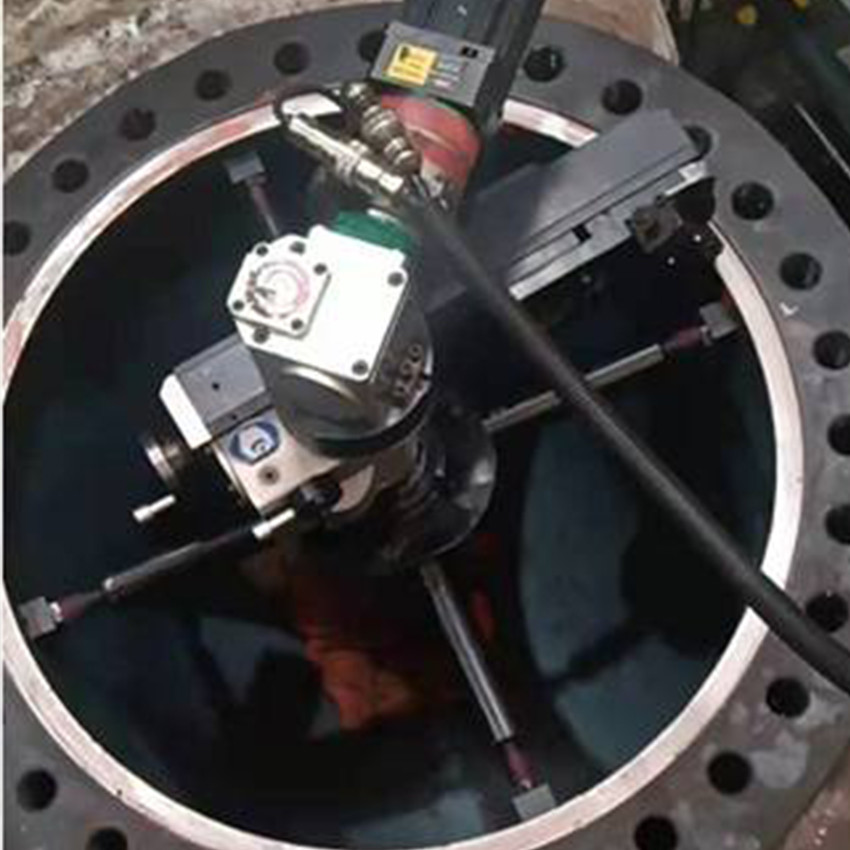

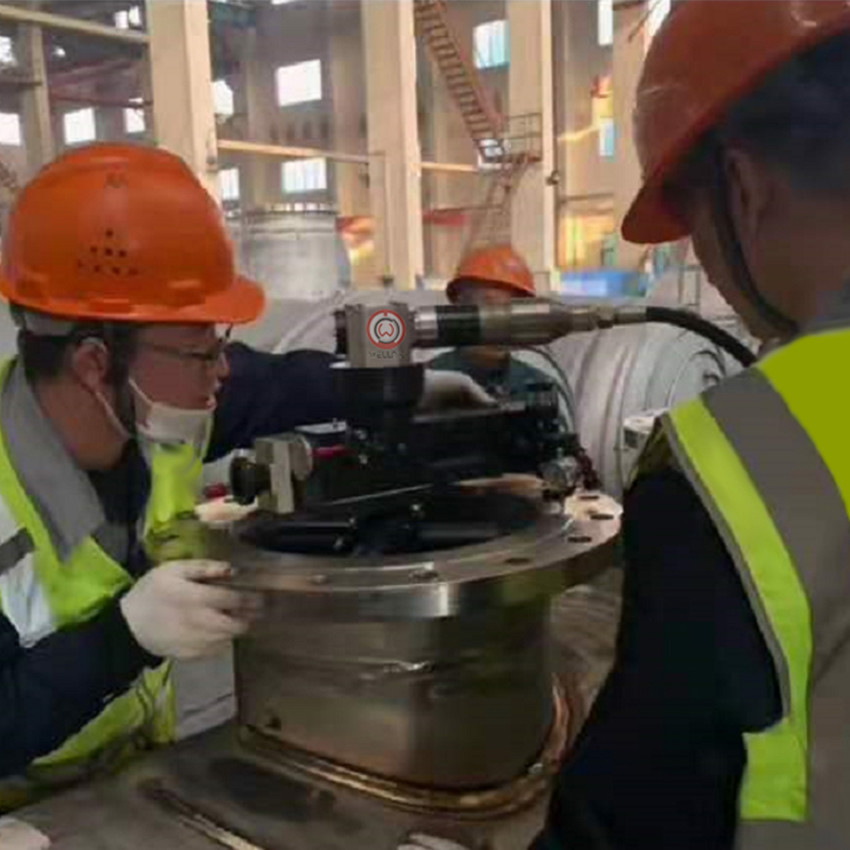

Engineering case

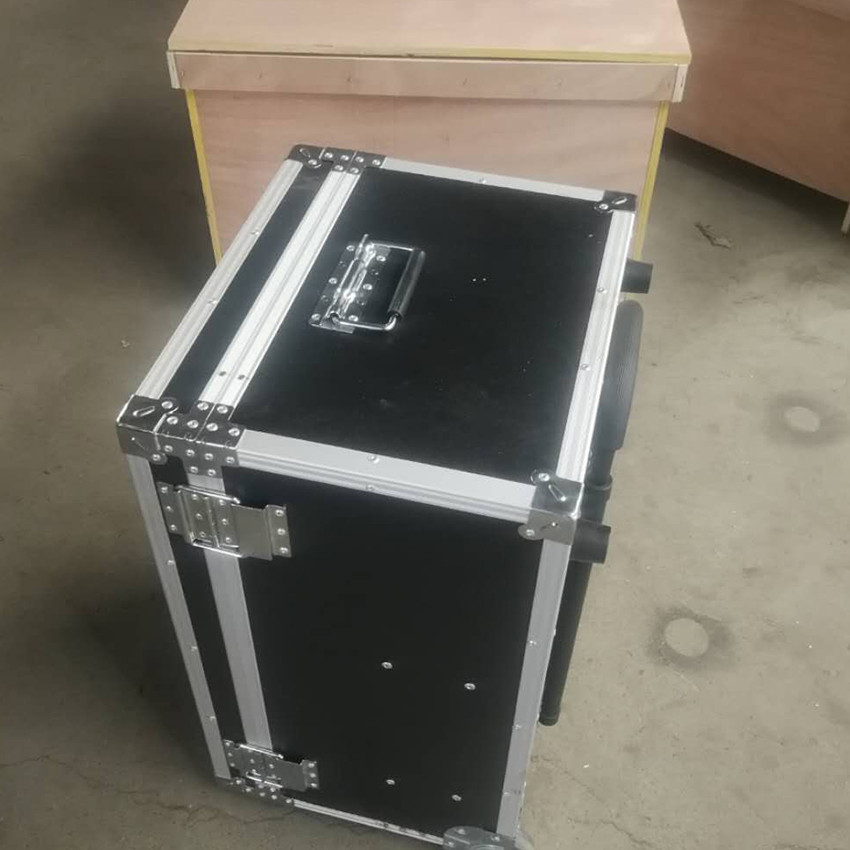

Product packaging

Flange Electric Pipe Beveling Machine 42r/Min Cutting

Product Tags:

Flange Electric Pipe Beveling Machine

42r/Min Cutting Pipe Beveling Machine

ISO9001 Electric Pipe Beveling Machine

Flange Electric Pipe Beveling Machine 42r/Min Cutting Images
